OSC

This plugin brings the power and versatility of the Open Sound Control (OSC) protocol to your fingertips using existing network infrastructures.

The Open Sound Control (OSC), recognized for its robustness and reliability, allows you to exchange commands with a variety of AV equipment or computer using QLab in a seamless and transparent manner.

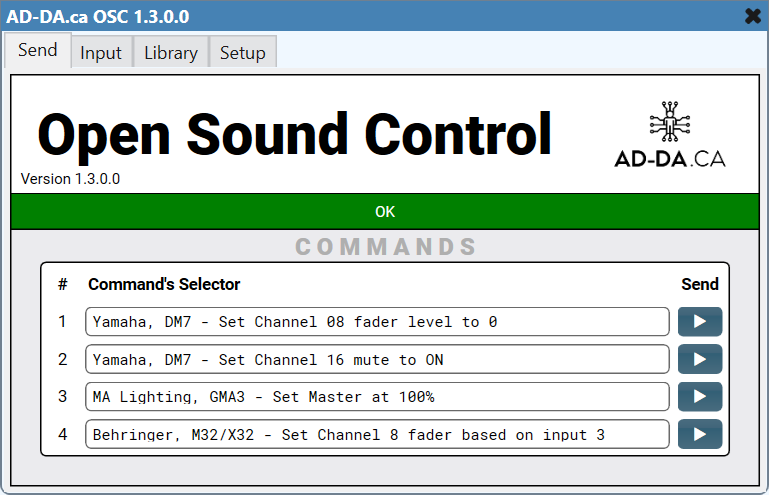

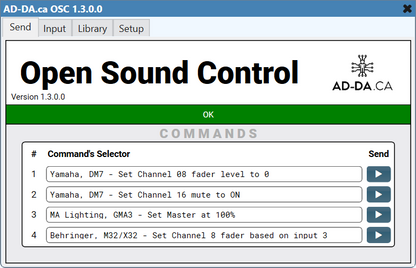

• Send and Receive OSC commands.
• Use input events to send OSC commands.
• Insert multiple instances of the plugin.
• Use custom IP Address and/or Connection Port for each instance.

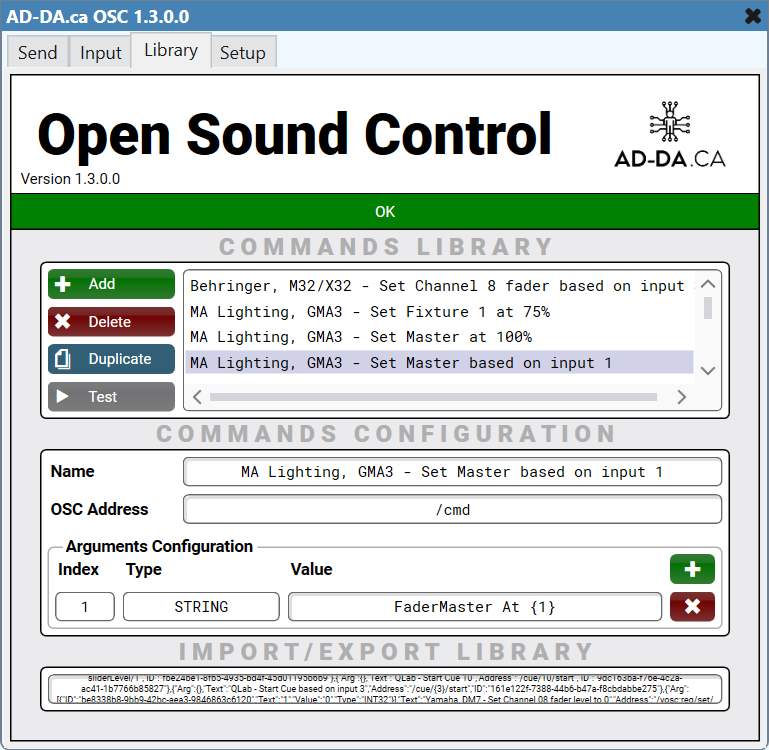

• Create custom OSC commands libraries that can be imported and exported easily.

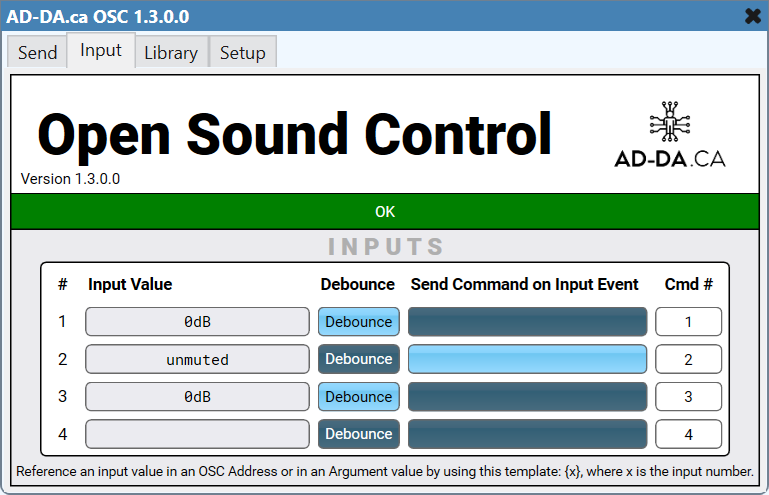

• Use inputs placeholders to inject inputs values into your custom OSC Commands.

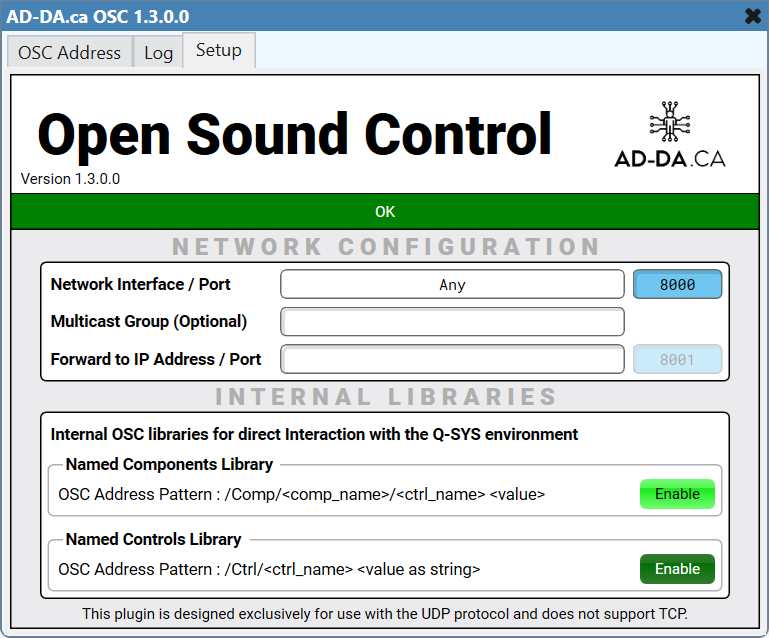

• Use internal OSC Libraries to interact directly with the Q-Sys environment.
• Interact with external OSC Devices such as Q-Lab systems and internal components within Q-sys thru connection pins or using scripts.

2025-10-03: V1.3.0.0

• • Changed NIC Selection (Receive Mode) from ALL to ANY
  • Fixed network compatibility issues for QDS 10.0.X Emulation Mode
  • Resolved combobox and listbox integer text field issues for QDS 10.0.X
  • Added support for new license types
  • Added support for Boolean type arguments (true and false)
  • New argument type "INPUT TO BOOLEAN" - converts "false" or 0 to boolean false, converts "true" or 1 to boolean true. Useful for converting input {1} to T/F, like a mute button. Accepts as true: true, "TRUE", "true", 1, 1.0, "1", "1.0"
  • Added unique UUID to newly created command names to ensure unique names
  • Fixed UI glitches in the command's library page
  • Enhanced Internal Components and Named Controls Library - now supports multiple argument types:
    • If arg type is string, modifies the .String of the control
    • If arg type is boolean (true or false), changes the .Boolean of the control
    • If arg type is FLOAT, affects the .Position of the control
    • If arg type is INT32, affects the .Value of the control
    • If arg type is string and the string is "Trigger", triggers the control
  • Enhanced Command Library functionality - clearing the field now deletes/resets the command library. Entering "TEMPLATE" loads a library with examples (loaded by default on first plugin use)

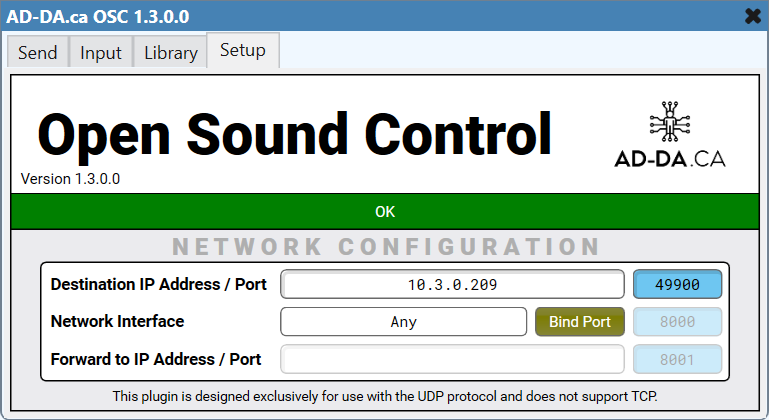

  • Added ability to bind UDP port when sending messages to ensure destination can reply on a known port
  • Send Mode now sends via Notification incoming messages when BIND PORT is enabled
  • Added message forwarding functionality with Forward to IP Address and Forward Port controls
  • Receiver in Follower mode now only receives messages from selected PORT
  • Receiver in Follower mode no longer disables port controls

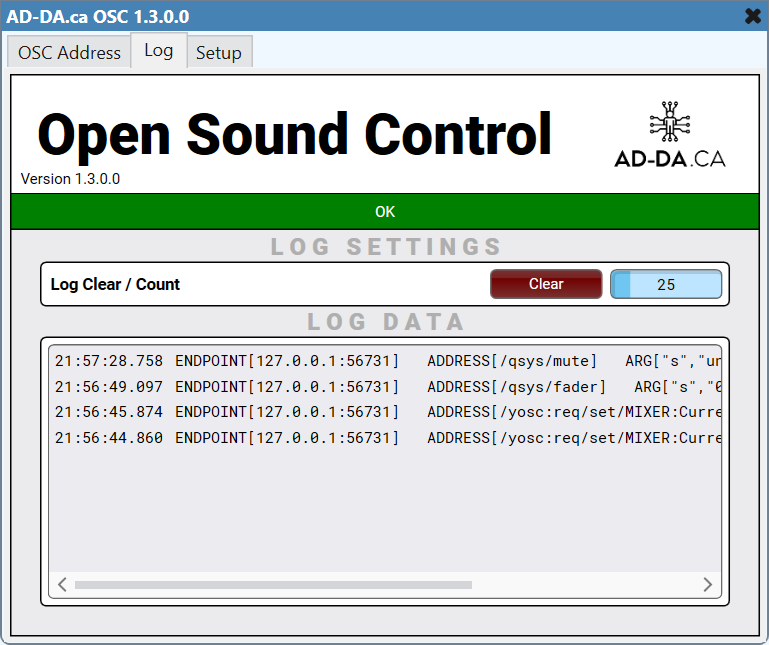

  • Enhanced message logging - all incoming messages are now printed in the log for better troubleshooting

2024-09-25 : V1.2.0.0

• Initial release to Asset Manager
• Breaking changes: control's name has changed
• New UI / Pages
• Add Duplicate function in command library
• Add Test function in command library


2024-06-21 : V1.1.0.0

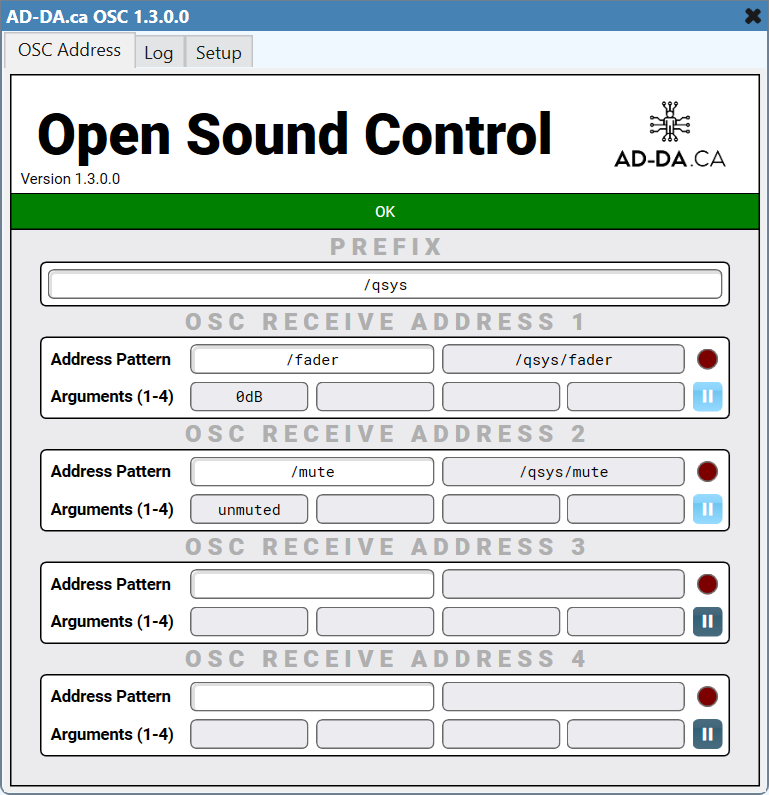

• Add OSC receive function
• Add the ability to control Named Components and Named Controls via OSC messages.
• Add the ability to import/export the command's library in Send mode.


2024-06-12 : V1.0.0.0

• Initial Release

A license key is required. One license per core, no matter how many times you use it into your design.
